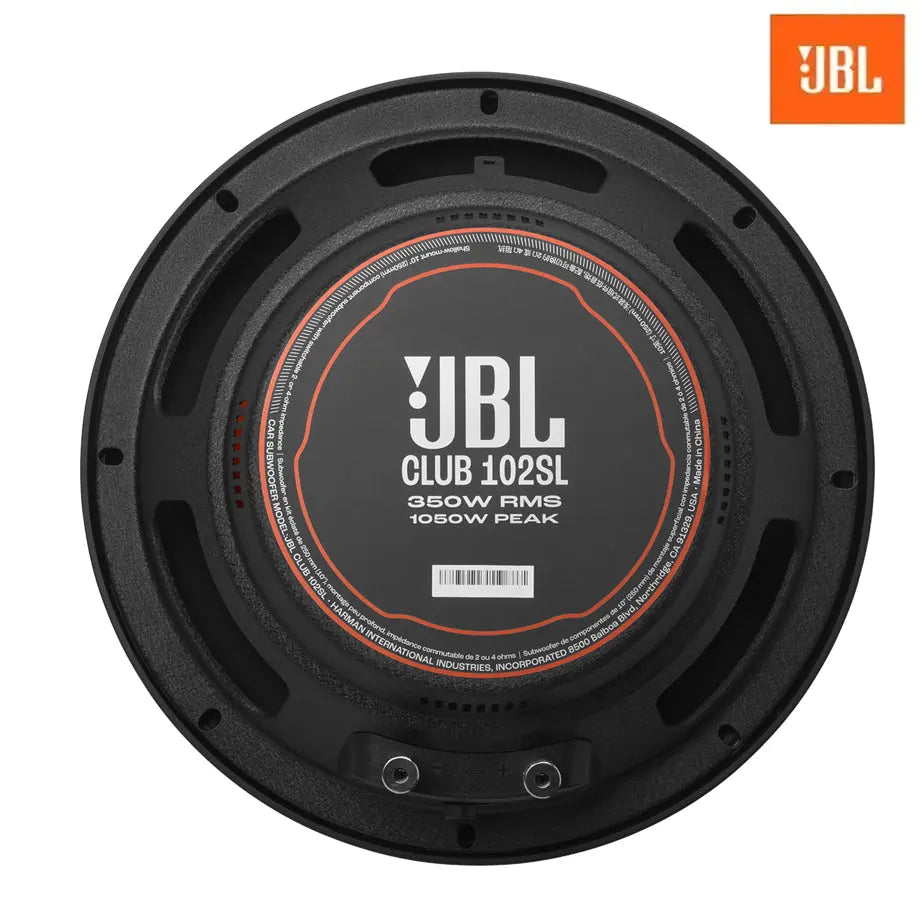

JBL Club 102SL 10-Inch Switchable Slim Subwoofer - 350W RMS

JBL Club shallow-mount subwoofers deliver deep powerful bass that will take your system to the next level. Using our proprietary cone design and high roll surrounds, they are extremely efficient and require less power to deliver the goods. The JBL CLUB shallow-mount subwoofers are also happy in both sealed and bandpass box configurations, delivering powerful, punchy and accurate bass in all. They also feature SSI™ (Selectable Smart Impedance), an exclusive impedance switch that lets you select the optimum impedance, 2 or 4 ohms for your chosen amplifier and overall system layout.

SSI™ (Selectable Smart Impedance)

Most car audio system designs call for 2- or 4-ohm impedance. Club shallow-mount subwoofers feature an exclusive dual impedance switch that lets you choose either load impedance option depending on your particular system and amplifier choice. Not available from any other manufacturer, SSI lets you reconfigure your system by simply flipping a switch.

Aluminum Woofer Cone

A proprietary aluminum woofer cone has been engineered to provide high output while maintaining its shape to full excursion to ensure low distortion and minimal unwanted audible acoustical artifacts. The end result is deep, full bass performance that is musical and impactful.

Vented Basket Design for System Cooling

Club shallow-mount subwoofer vented basket keeps voice coil cool even at high output levels to ensure long term reliability.

High-Roll Rubber Surrounds

Club shallow-mount subwoofers incorporate a high-roll surround that provides superior cone edge suspension while maximizing excursion. It not only increases the cone area, it also provides remarkable linear stability and reliability.

Purposeful Design

JBL Club shallow-mount subwoofers feature a large inverted dust cap mated to a JBL orange cone with a subtle reveal for a pop of color. The slash pattern forms a JBL Horn prominently on the dust cap. The unique surround design allows the trim ring to press fit into it and conceal any fasteners. This gives the subwoofers a sleek clean appearance when installed.

What’s in The Box?

• 1x 10″ Subwoofer
• 1x EVA Foam Gasket
• 1x Owner’s Manual

Specifications

Subwoofer: 10″ (250mm) Aluminum Driver

Power Handling: 350W RMS, 1050W peak

Sensitivity (1W/1m): 82.5dB

Frequency Response (-6dB): 35Hz – 500Hz

Nominal Impedance: 2 or 4 ohms, switch-selectable

Voice Coil Diameter: 2″ (50mm)

Cutout Diameter: 9″ (228,61 mm)

Mounting Depth: 3-1/4″ (82.5mm)

*This Product is a Parallel Import
