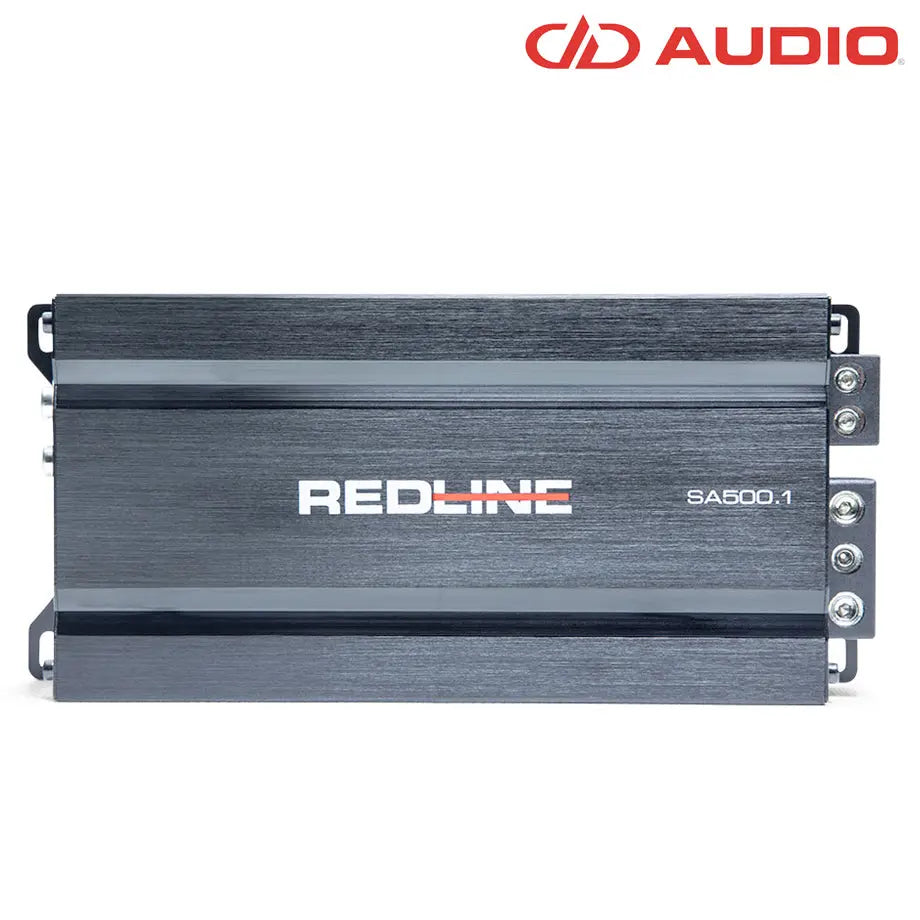

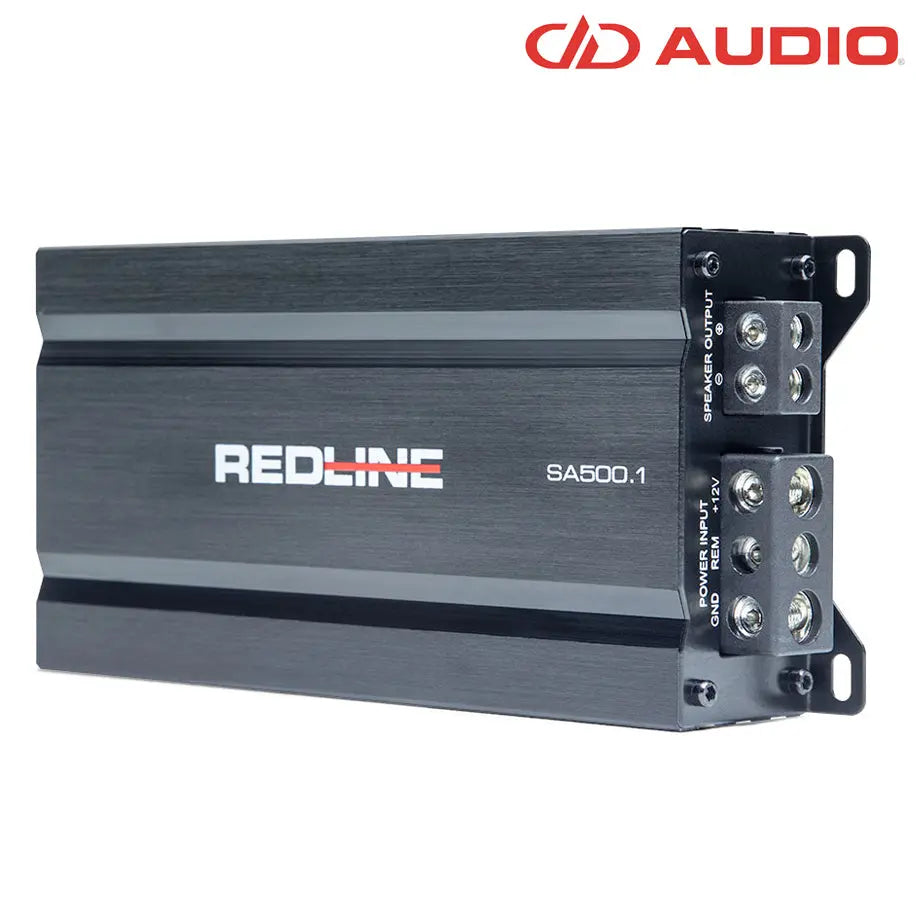

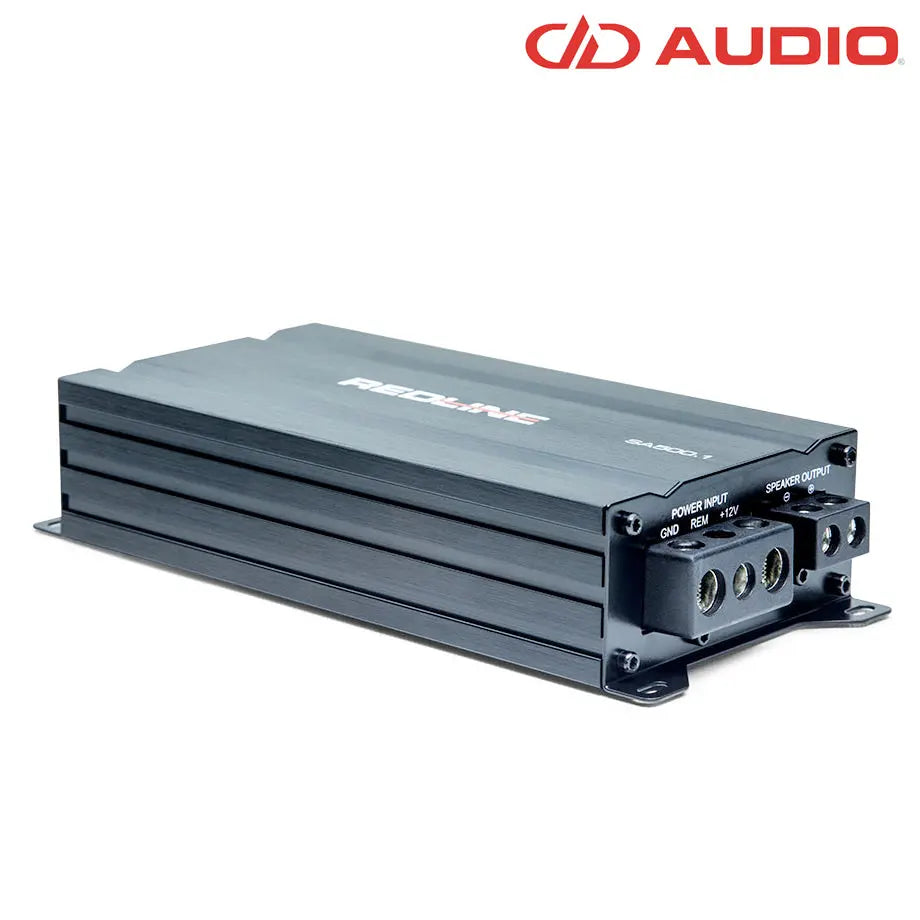

Digital Design DD-RL-SA500.1 RedLine Monoblock Compact Amplifier 500W RMS

The REDLINE SA Series amplifiers utilize the latest Class D topology to offer powerful output from an ultra compact chassis. Small space, big power, sizable savings.

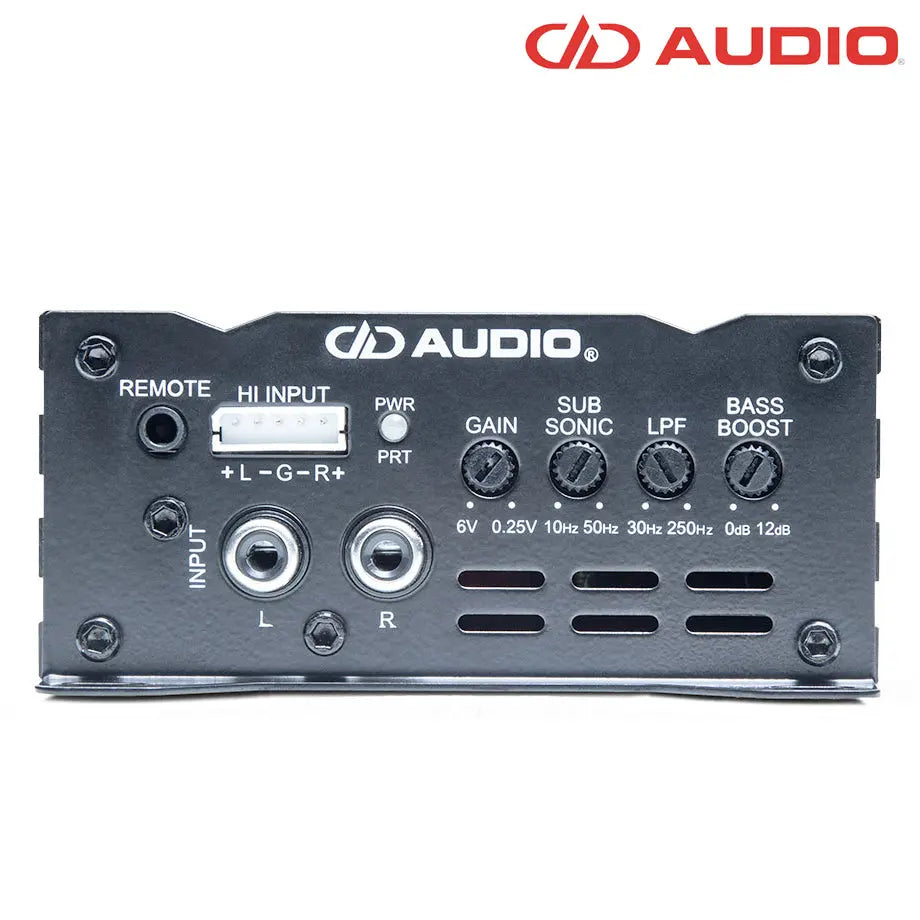

The RL-SA500.1 efficiently delivers the power to drive a DD AUDIO loaded enclosure or pair of RL-SW subwoofers. Bandpass crossovers and bass boost capabilities allow precise tuning of the sub stage while the included remote control knob adds the ability to make on the fly adjustments of the subwoofer volume.

With the ability to utilize either RCA Line Level or High Level inputs, the REDLINE SA Series amplifiers provide easy factory integration without the need for a line output converter or aftermarket head unit.

• Continuous Wattage @4ohm: 250W RMS

• Continuous Wattage @2ohm: 390W RMS

• Continuous Wattage @1ohm: 500W RMS

• Max Wattage: 1000W
• Output Channel(s): 1
• Operating Voltage: 10 – 16
• Test Voltage: 14.4
• Max Current Draw (Amps): 50
• RCA Input Voltage Sensitivity: 6 – 2.5
• High-Level Input Voltage Sensitivity: 20 – 1.1
• RCA Input S/N: > 85
• Damping Factor: > 70
• THD: < 0.1%
• Bass Boost: 12dB @ 45Hz
• Frequency Response (Hz): 10 – 250
• Sub-Sonic Filter: 10 – 50
• Low-Pass Filter: 30 – 250

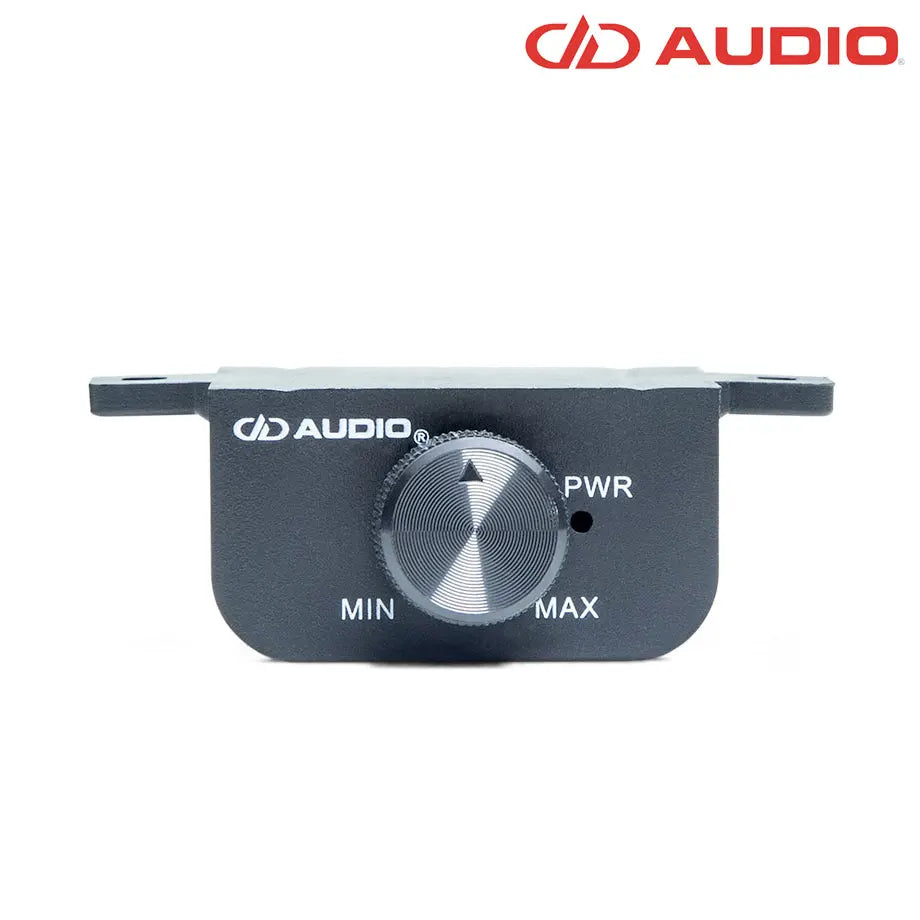

• Bass Remote Included in Box

• Dimension (mm): 180 x 96 x 43
