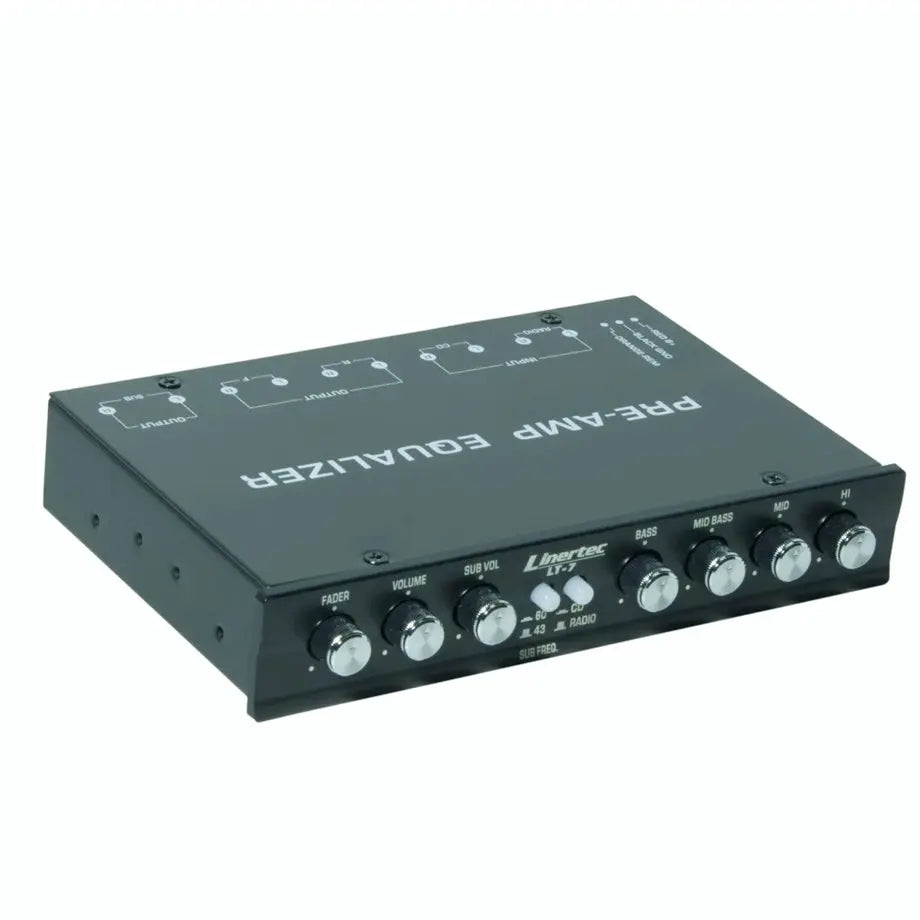

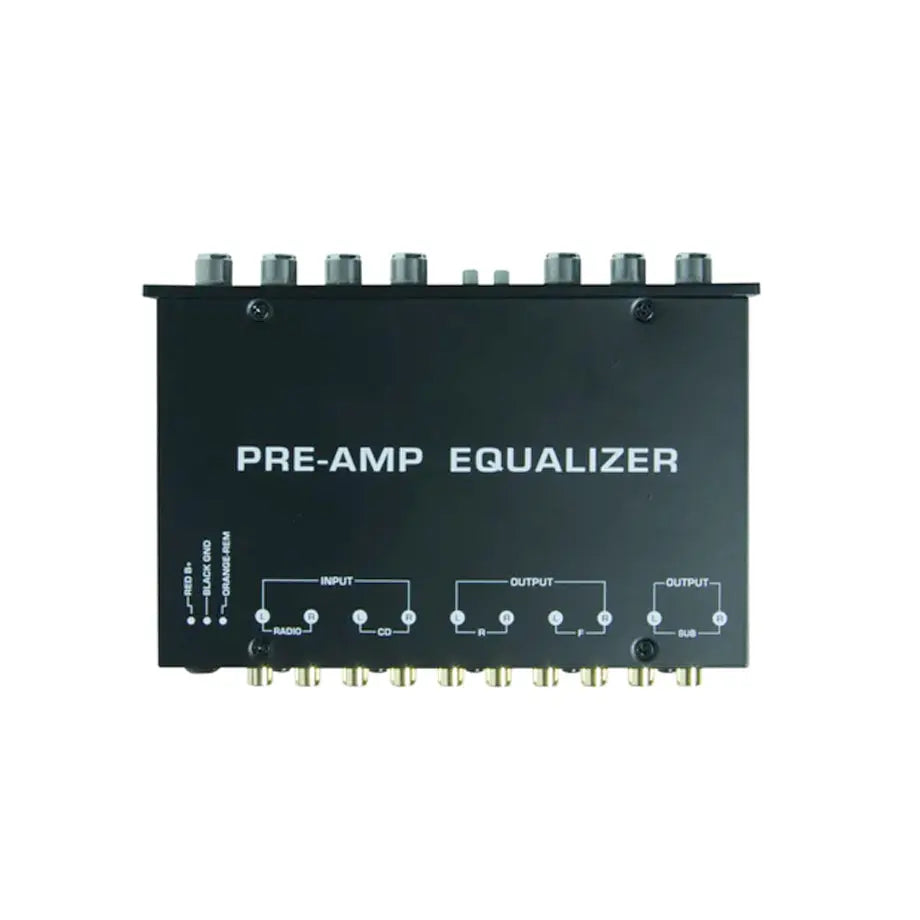

Linertec LT-7 Pre-Amp 4-Band Equalizer Max Motorsport
Linertec LT-7 Pre-Amp 4-Band Equalizer Max Motorsport
  • Load image into Gallery viewer, Linertec LT-7 Pre-Amp 4-Band Equalizer Max Motorsport
  • Load image into Gallery viewer, Linertec LT-7 Pre-Amp 4-Band Equalizer Max Motorsport

Linertec LT-7 Pre-Amp 4-Band Equalizer

Part Number : LT-7

Regular price
R 749.00
Sale price
R 749.00
Regular price
Sold out
Unit price
per

Product Features-

The Linertec LT-7 pre-amp equalizer is a 4 band parametric equalizer and preamp engineered to give you precise control over your receivers output while also providing efficiency to your amplifier and sound system.

Designed with a 12db boost or cut adjustment control for each of your high, midrange, midbass and bass bands. The LT-7 allows you to have the freedom to tailor your music and fine-tune low frequencies to get the bass kicking the way you like.

The LT-7 also functions as a line driver/preamp. With an output voltage of 7V RMS, the master volume knob lets you boost the signal up to the level that your amplifiers need to play at maximum efficiency while lowering the noise floor of your system, even through long wire runs. With a compact body the LT-7 pre-amp equalizer will be an easy and welcome addition to your sound system.

Specifications:

Supply Voltage 11~15V DC neg. ground
Output Voltage 7V RMS
Parametric Equalizer Frequency
Bass Frequency 50Hz
Mid-bass Frequency 250Hz
Mid Frequency 2.2KHz
High Frequency 16KHz
Parametric Equalization Range ±12dB
Subwoofer Frequency 43/60 Hz
Frequency Response (-3dB) 10Hz~50KHz
Signal to Noise Ratio 80dB
Input Impedance 20K ohms
Channel Separation 70dB
